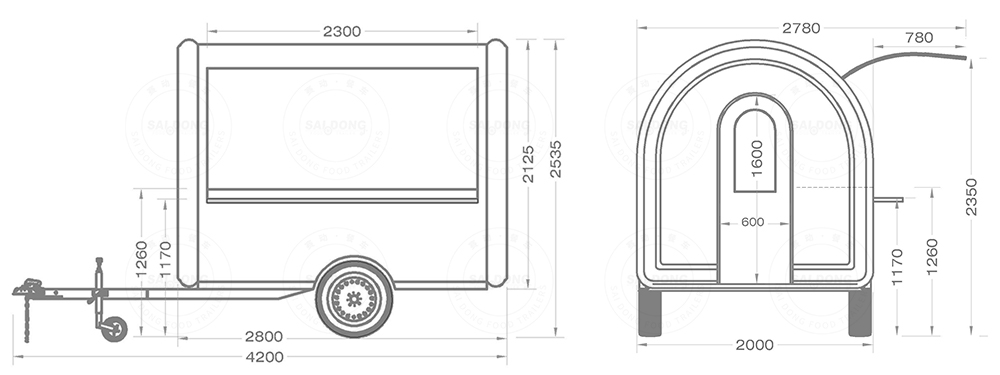

Overall length (cm)：420
Body length (cm)：280
Total width / internal width(cm): 200/180
Total height / internal height(cm): 250/210
Axle：1
Tire type：R13*2
brake：no,but can customized
Service Window: 1
Door: 1
Product Description
1.Chassis and Frame: Welded by galvanized frame with paint against rust
2.Towing bar: Draw bar with safety ball headed coupling
3.Chains: Safety chains with 10mm
4.Drawbar: Tractor drawbar with safety ball headed coupling Towing chains for safety and security while towing
5.Jacks: 4 adjustable jacks for support the trailer
6.Body: Fiberglass panel with mid head insulation material and frame welded with hot zip squire pipe
7.Flooring: Non-slip aluminum pattern floor

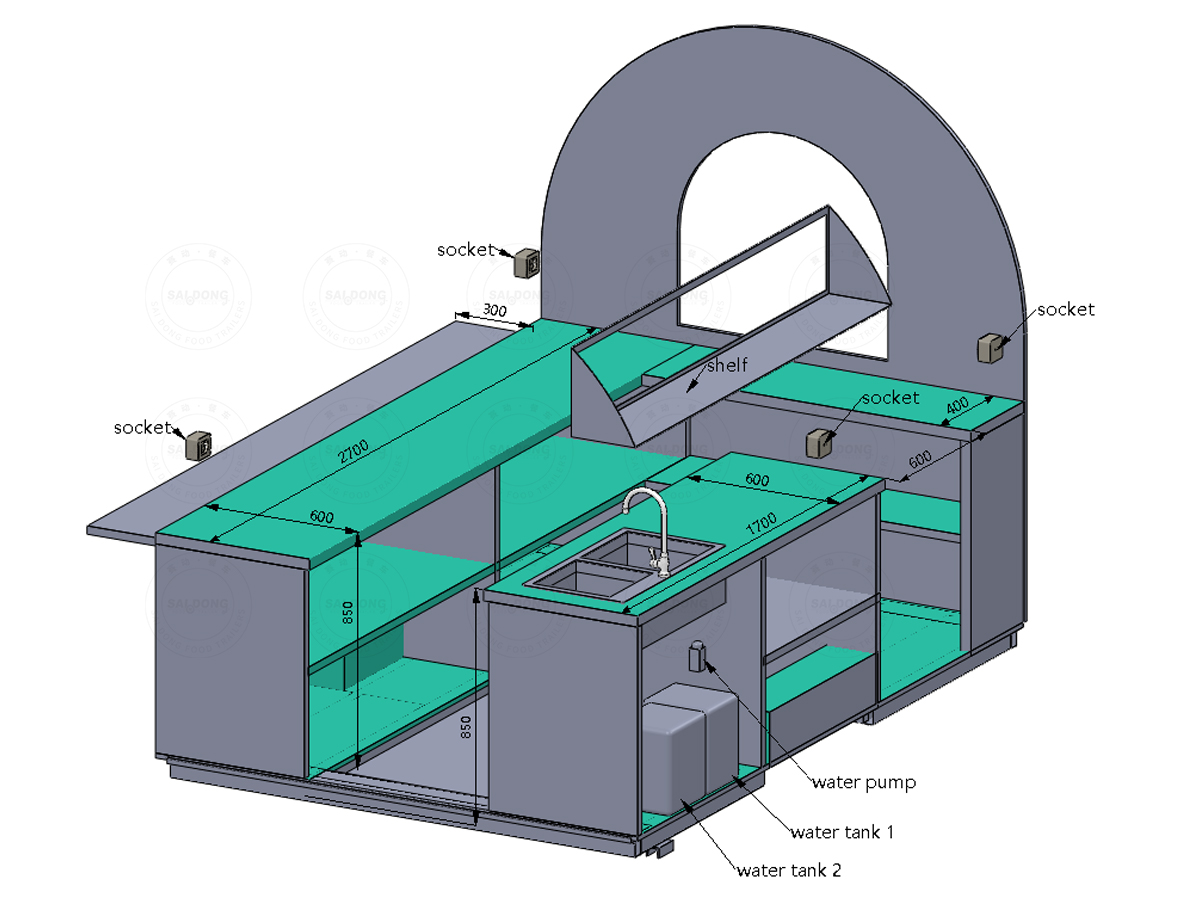

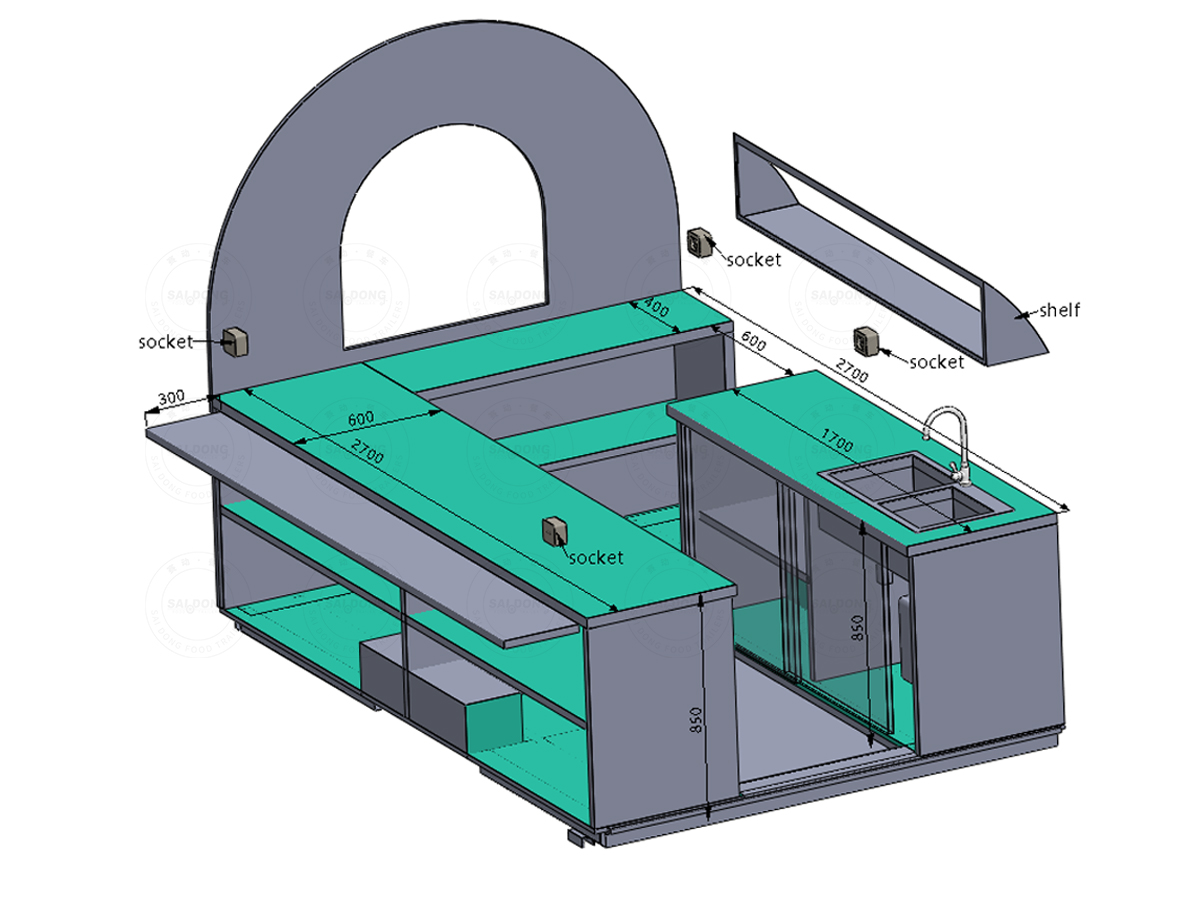

8.standard interior details: front worktable+back worktable+ cabinets+shelves+double sink+2 water tanks+4 sockets,etc.
